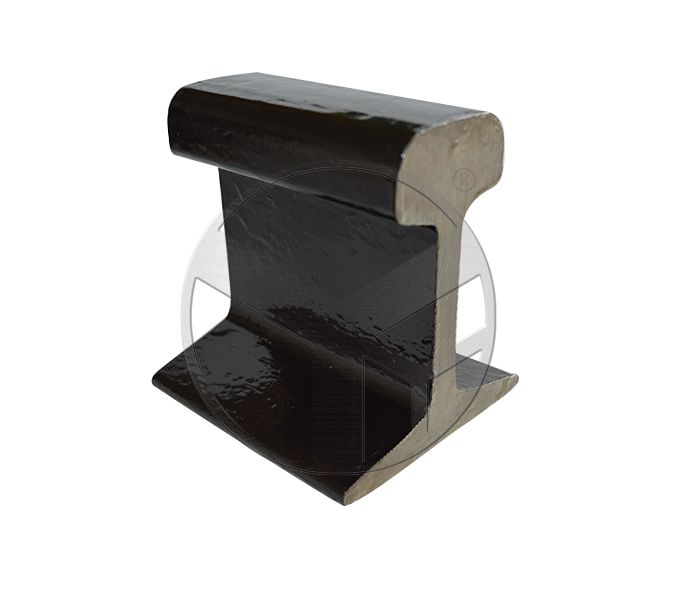

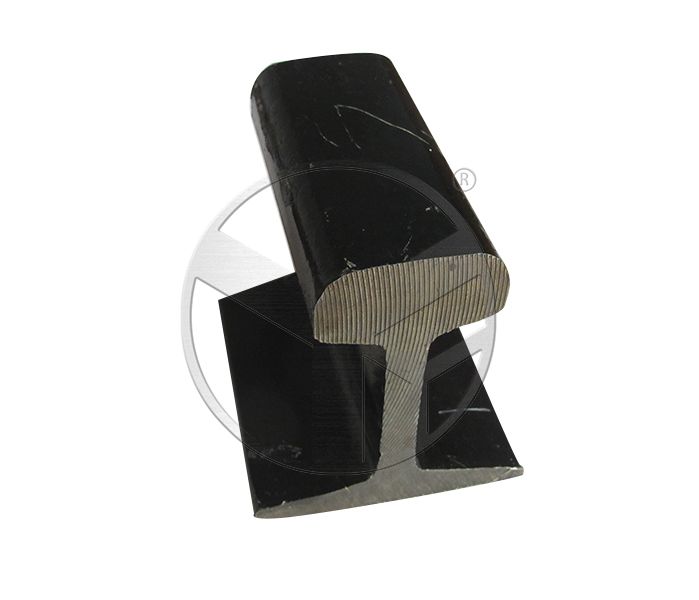

  • 24Kg Light Steel Rail
  • 24Kg Light Steel Rail
  • 24Kg Light Steel Rail
Product Name:

24Kg Light Steel Rail

Material: Q235/55Q

Weight:24.46Kg/M

Length:6-10m

Standard:GB11264-2012


Share

Product Parameters


Parameters
typeweight (kg/m)materiallength (m)
24kg24.46Q235/55Q6-10m

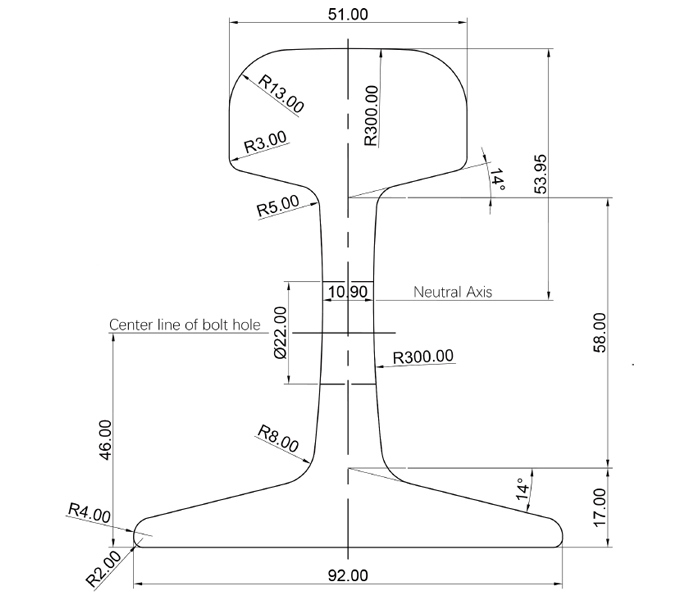

rail height (mm)bottom width (mm)head width (mm)web thinkness (mm)
107925110.90


Light Steel RailsizeRail HeightBottom WidthHead WidthWeb ThicknessWeightkg/m
8kg65542578.42
12kg69.8569.8538.17.5412.2
15kg79.3779.3742.868.3315.2
18kg9080401018.06
22kg93.6693.6650.810.7222.3
24kg107925110.924.46
30kg107.95107.9560.3312.330.1

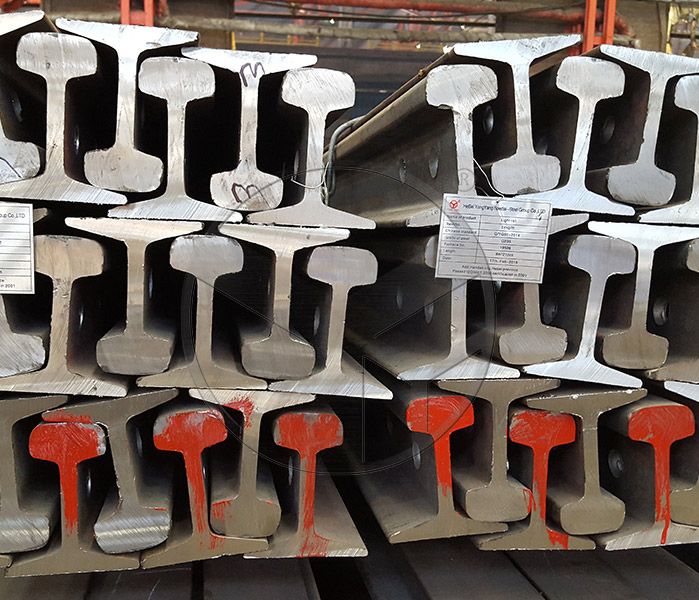

24Kg Light Rail



Introduction and application


Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.



The steel rail in china are divided into Crane rail, Heavy rail and light rail.

Light rail is divided into GB and the ministry standard (YB metallurgical standard). There are 8kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg.

The light rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.
