  • TB/T 2344-2012 60kg railway rail china manufacturing
  • TB/T 2344-2012 60kg railway rail china manufacturing
Product Name:

TB/T 2344-2012 60kg railway rail china manufacturing

Material: U71Mn/U75VX

Weight:60.80Kg/m

Length:12-25m

Standard:TB2344-2012


Share

Product Parameters


Parameters
typeweight (kg/m)materiallength (m)
60Kg60.80U71Mn/U75VX12m-25m
rail height (mm)bottom width (mm)head width (mm)web thickness (mm)
1761507316.5



Heavy Steel RailSizeRail HeightBottom WidthHead WidthWeb ThicknessWeightkg/m
38kg134114681338.733
43kg1401147014.544.653
50kg1521327015.551.514
60kg1761507316.560.8
75kg192150752074.64





60Kg Heavy Rail


Introduction and application


Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.


The steel rail in china are divided into Crane rail, Heavy rail and light rail.

Regarding heavy rail, there are 38kg, 43kg, 50kg, 60kg and 75kg. It also called P38 steel rail, P43 steel rail, P50 steel rail, P60 steel rail and P75 steel rail.

The Heavy rail is mainly used for the laying of temporary transportation lines and light locomotive lines for tunnel, seaport, factories and construction sites.

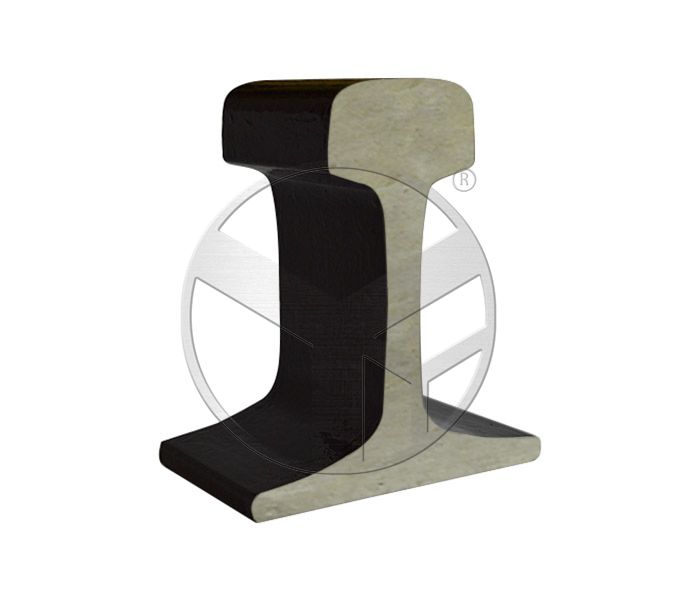

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail

60Kg Heavy Steel Rail
