Home >> Product >> American Standard Railroad

  • 60LBS RAIL 60LB/YD RAIL ASCE 60 RAIL
  • 60LBS RAIL 60LB/YD RAIL ASCE 60 RAIL
  • 60LBS RAIL 60LB/YD RAIL ASCE 60 RAIL
Product Name:

60LBS RAIL 60LB/YD RAIL ASCE 60 RAIL

Material: 700/Q235/55Q
Weight: 29.76kg/m
Length: 6m/8m/10m
Standard: ASTM A1/AREMA

Share

Product Parameters

The 60LBS RAIL is typically used for light cargo or light rail transit lines, but can also be used for less frequently used rails. The 60 lbs rail is produced according to the American ASCE standard ASTM A1 and is mostly used in North America. 60 lbs rail can also be called 60-pound rail, which weight 60 pounds per yard. The 60 lbs rail weight per meter is 29.8kg, equivalent to 29.8kg/m.

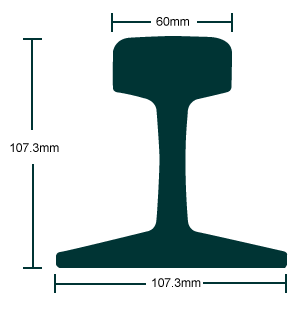

60 LBS Rail Specification & Drawing

60LBS RAIL

Rail Type:60 LBS Rail (ASCE 60)
Nominal Weight(lbs/yd)60
Standard Length20', 30', 33' & 40'
Standard Drilling:2-1/2''×5'' with 15/16'' dia. holes
Rail Joint Length:20''
Rail Joint Weight:13 lbs/pr with hardware: 16 lbs/pr
Rail Bolt:3/4''×4''


60 LBS Rail Dimension in mm

TypeHead Width(mm)Rail Height(mm)Base Width(mm)Web Thickness(mm)Weight(kg/m)
60 LBS Rail(ASCE 60)60.32107.95107.9512.329.76

Some Common American Rail Sizes on Sale

60LBS RAIL is one of light rail, we also have 25lbs rail, 30lbs rail, 45lbs rail, tr45 rail, tr50 rail, 115re rail, 136re rail in stock.

60LBS RAIL


We can supply light rail, heavy rail and crane rail as per your requirement.


Strong Strength Railroad Track Manufacturer-YONGYANG RAIL


As a quality railroad equipment supplier, YONGYANG enjoys a good reputation in China and around the world. We can provide various sizes of high-quality American standards to meet your needs. All products are sold at factory wholesale prices and are fully stocked to meet customers' shipping needs. Please recognize the strong manufacturer YONGYANG RAIL for purchasing rail.

60LBS RAIL

Looking forwards to receive your valuable inquiry of rail.
