Railway Joints: Do You Know the Damage Reasons

Jan. 26, 2022 Share:

As the main part of the rail, the great or negative of the rail joint has a family member impact on the operation of the rail. Before acquiring rail joints or doing regular maintenance, people have to inspect the top quality and stability of rail joints

YONGYANG Rail analyzes the causes of failing of rail joints based on 20 years of experience in making railroad fasteners.


Rail joints are used to connect the two ends of a rail. Why select rail joints rather than rail butt welds? Rail joints are much more economical and much easier to install than butt welds. Generally, rail joints are kept in area by fishtail screws with some screw openings in the center of the rail joint. Rail joints can lower the effect of the wheels on the rail, enhance the connection of the longitudinal contortion of the rail, and improve the smoothness of train procedure.


Railway Joints

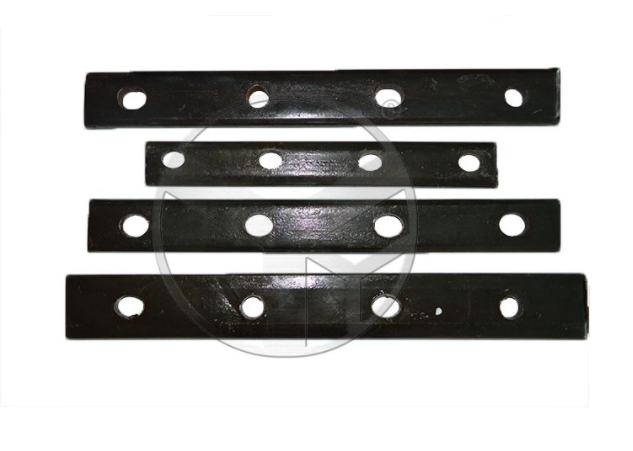

Fish Plate/Joint Bar



The factor of joint failure

Interaction of steel and rail

In actual working conditions, the rail joint as well as fishtail bolt and also rail end are not inflexible whole. The impact of the wheels, the existence of rail gap will lead to the compaction of the rail and rail joint bar, so that the rail joint deformation. Additionally, the wear between the rail and also the rail joint leading to the decrease of stress also promotes the contortion of the surface. Splits externally of rail joints are created under these problems..

Interactions impact the area and timing of splits, and loading conditions and also products establish how and at what range the splits increase.


Season and temperature change

Period is an additional factor for the failure of the rail joint. From using rail joints, the fracture of rail joints in winter months is greater than the other three periods. Rail joint fracture might be related to the adjustment of rail clearance in winter season. The increase of rail clearance elevates the tensile anxiety of rail joints, specifically at the location of the third and also 4th screw openings.


Railway Joints

U Shaped Steel Arch Clamp


Other reasons

In addition to the two variables we stated above, a few other causes might likewise contribute to the cause of rail joint failing. There are some special objective rail joints, such as eclectic rail joint bars as well as rail joints for tunnel. Due to the extra intricate force state, upkeep is more difficult, while the concession kind rail joint is often impacted by destructive air, so its failure rate is greater than the common fishtail plate.
