Product Name:

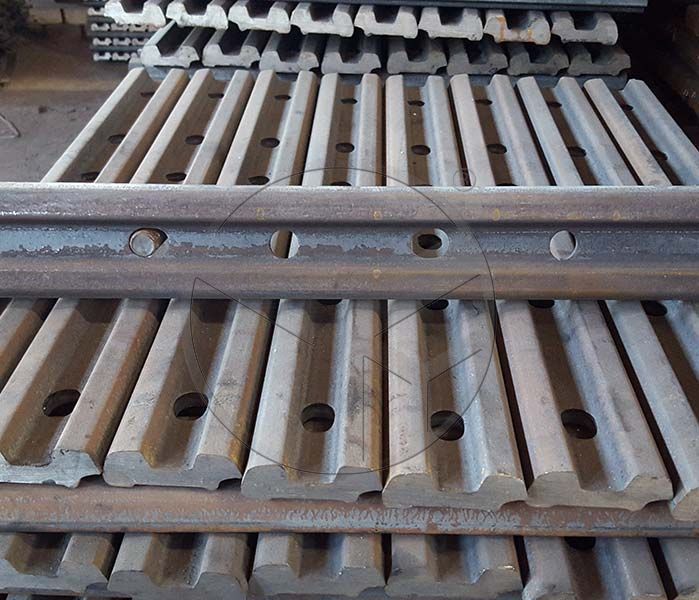

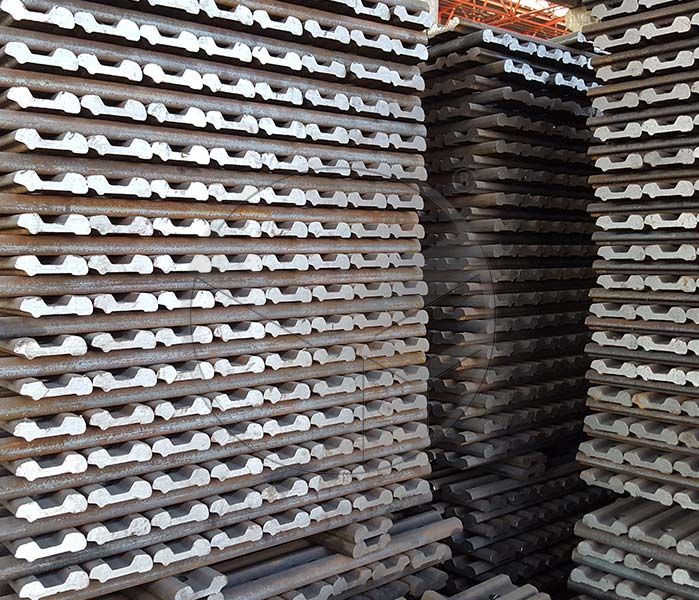

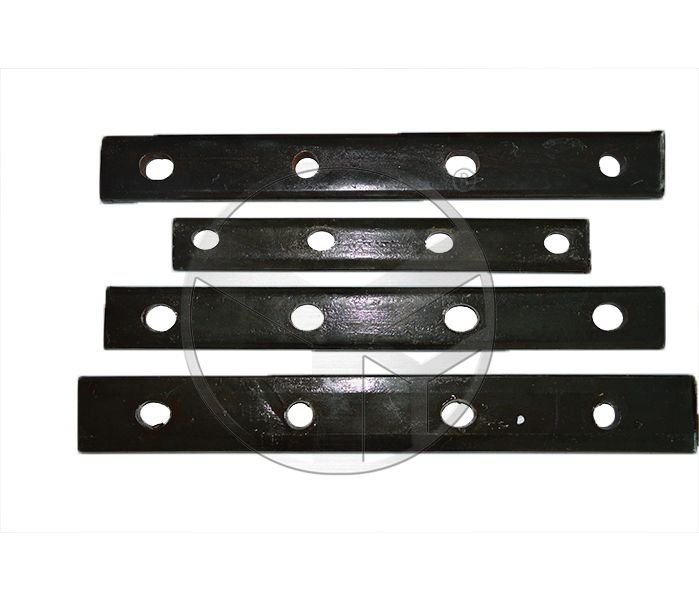

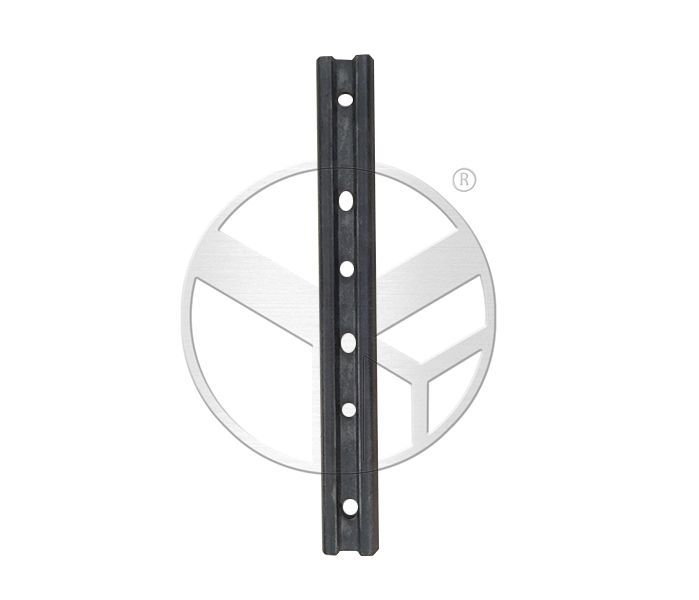

Fish Plate/Joint Bar

Fish Plate, also known as joint bar Splice bar and angle bar, is the fastener to connect the rails, generally consist of clamp and track bolt, could be removed and reuse.

Share

Product Parameters

Rail joints, usually called fish plate, commonly known as the joint bar, is a component that joint rails end-to-end. It is applied to light rail, heavy rail and crane rail. There are holes in the middle of the fish plate for rail bolt to screw. The top and bottom of the fish plate are made into slopes corresponding to the slope of the lower part of the railhead and the top part of the rail bottom. Thanks to the design which helps the joint bars wedge the rails, the rail joints can be bolted to the rail very tightly. Therefore, good rail joints can reduce the impact of wheels at the joint and improve the smoothness of the passing trains.



While welded rails are quickly developed and used more often, the rail joints still have their advantages of saving cost and labor since its simple and quick installation. The working state and safety performance of the rail joints directly affect the running state and safety of the line.

According to the raw materials used, rail joints can be divided into ductile iron, Q235 type, and Q255 rolling type, forging type, etc. In general, medium and high carbon steels are used as raw materials. According to different applications, rail joints can be divided into bolted rail joints, compromise rail joints and insulated rail joints.

Bolted rail joints

Bolted rail joints are the primary choice for slow-speed, light transport railroads.



Rail Joints for Sale

Rail joints for light rail: 8kg, 9kg, 12kg, 15kg, 18kg, 22kg, and 30kg.

Rail joints for heavy rail: 43kg, 50kg, and 60kg.

Rail joints for crane rail: QU70, QU80, QU100, and QU120.

Rail Joints of International Standards

Type

Length/Diameter

Weight

115RE

4 hole-24″

17.04Kg

115RE

6 hole-36″

25.56Kg

132-136RE

4 hole-24″

17.75Kg

132-136RE

6 hole-36″

26.63Kg

Type

Length/Diameter

Weight

115RE

4 hole-24″

17.04Kg

115RE

6 hole-36″

25.56Kg

132-136RE

4 hole-24″

17.75Kg

132-136RE

6 hole-36″

26.63Kg

Other track material such as gauge rods, rail clip, rail clamp, rail pad are available as well.
