Mechanical Properties Of Angle Steel

Aug. 27, 2019 Share:

Find here details of Angle Bar. We are a professional Angle Bar Supplier.

If you want to know Angle Bar Price, welcome to contact us.

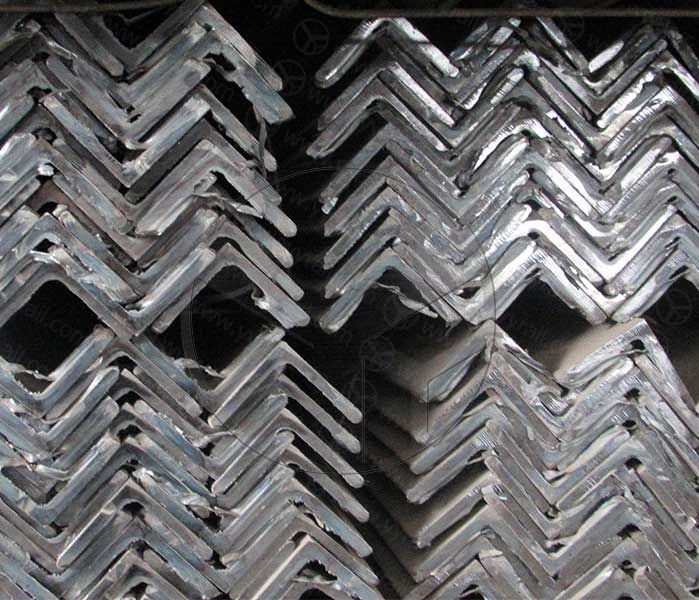

Angle Barl

Angle Bar

Angle steel, commonly known as angle iron, is a long strip of steel that is perpendicular to each other on both sides. There are equal angle steel and unequal angle steel. The sides of the equiangular steel are equal in width. The specifications are expressed in millimeters of side width × side width × side thickness. For example, "∟30×30×3" means an equilateral angle steel with a side width of 30 mm and a side thickness of 3 mm. It can also be expressed by model number, the model number is the number of centimeters of the side width, such as ∟3#. The model does not indicate the size of the different side thicknesses in the same model. Therefore, the side width and thickness of the angle steel are filled in the contract and other documents, so as to avoid the model number. The specification of hot rolled equal angle steel is 2#-20#. The angle steel can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Widely used in a variety of building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transport machinery, ships, industrial furnaces, reaction towers, container racks and warehouses.

Mechanical properties of angle steel:

(1) Inspection method:

1 tensile test method. Commonly used standard inspection methods are GB/T228-87, JISZ2201, JISZ2241, ASTMA370, BS18, DIN50145, etc.; 2 bending test method. Commonly used standard inspection methods are GB/T232-88, JISZ2204, JISZ2248, ASTME290, DIN50111.

(2) Performance index: The inspection items for evaluating the performance of angle steel are mainly tensile test and bending test. Indicators include yield point, tensile strength, elongation and bend qualification.
