Product Name:

China standard QU120 Crane rail U71Mn


QU120 Crane rail is used for crane trolley, lifting trolley, normally we have stock, can deliver it timely, the length is 12 meters, material U71Mn, we can supply the all rail fasteners, such as weld rail clamp and rubber pad.


Material: U71Mn

Weight:118.10Kg/m

Length:12m

Standard:YB/T5055-2014


Share

Product Parameters


QU120 crane rail can be also used for large-scale projects, terminal hoisting containers, and laying of transportation lines for large machinery and equipment etc., and it's dedicated for gantry cranes. In addition, Yongyang Rail could also supply other crane rail specifications, like QU70 crane rail, QU80 crane rail and QU100 crane rail.


If you want to get more information about our products, please contact us as soon as possbile.



Parameters
typeweight (kg/m)materiallength (m)
QU120118.10U71Mn12

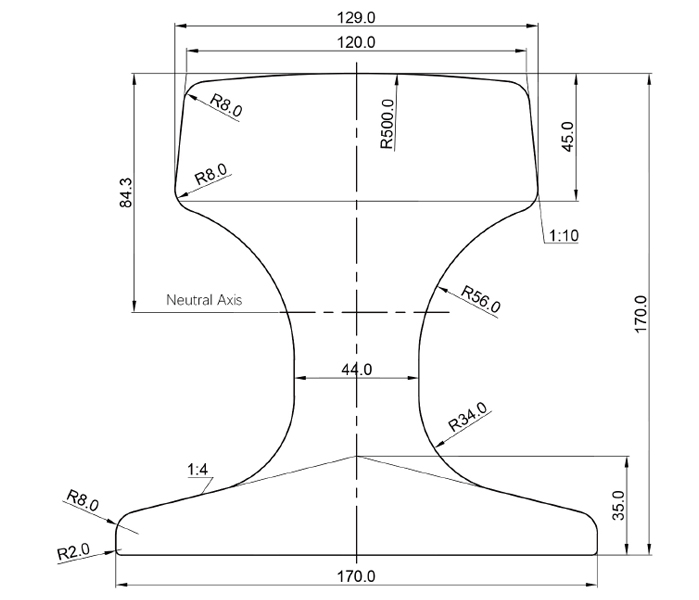

rail height (mm)bottom width (mm)head width (mm)web thickness (mm)
170170120(129)44


Crane RailSizeRail HeightBottom WidthHead WidthWeb ThicknessWeightkg/m
QU7012012070(76.5)2852.80
QU8013013080(87)3263.69
QU100150150100(108)3888.96
QU120170170120(129)44118.10

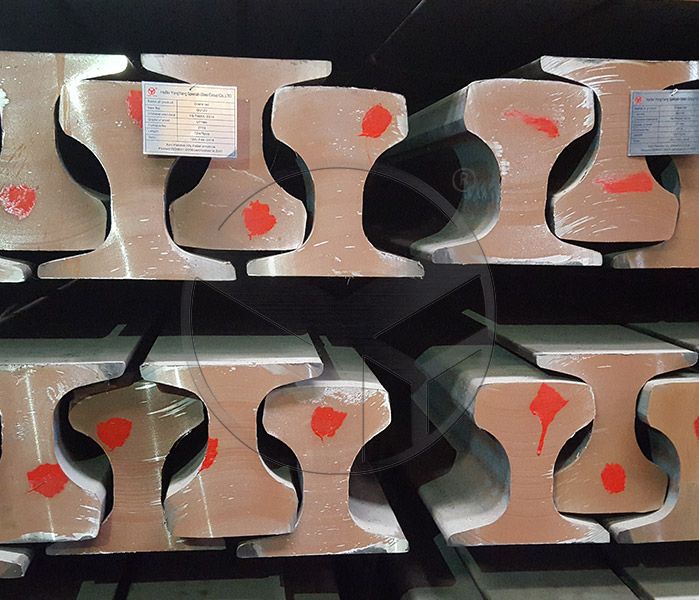

QU120 Crane Rail


Application:


Crane rails are designed for carrying heavy loads and are used in the laying of crane track for port building.Compared with the railway's heavy rail, crane rail height is low and head width thick waist size is bigger.


Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.


The steel rail in china are divided into Crane rail, Heavy rail and light rail.

In china, Crane rail includes QU70, QU80, QU100 and QU120. which also called ISCR70, ISCR80, ISCR100 and ISCR120 Crane rail in India. In russia, it called KP70, KP80, KP100 and KP120 Crane rail.
