Different Types of Steel Arches in Mining

May. 23, 2023 Share:

Steel arches are widely used in mining operations as a structural support system to reinforce mine tunnels, shafts, and other underground excavations. These arches provide stability, prevent collapses, and ensure the safety of mine workers. Depending on the specific requirements and conditions of a mining project, different types of steel arches may be utilized. In this article, we will explore the various types of steel arches commonly employed in mining.

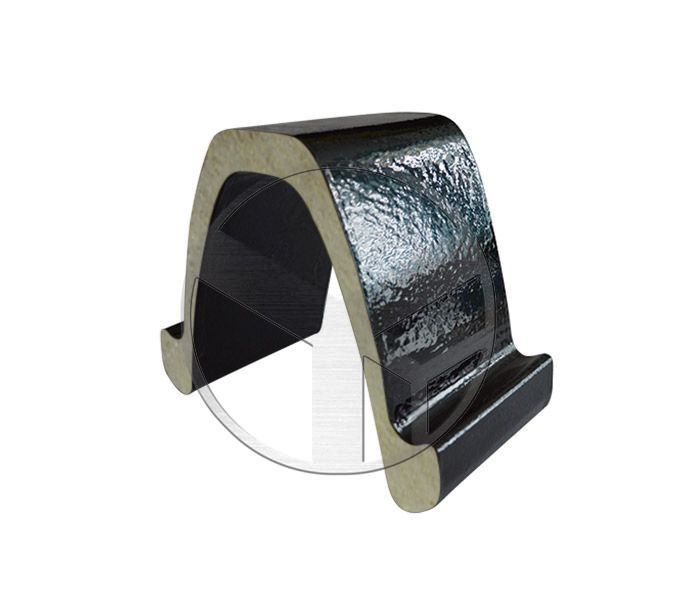

29 U Mining Arch Support Steel

 29 U Mining Arch Support Steel

I-Beam Steel Arches:

I-beam steel arches, also known as wide flange beams, are a popular choice in mining applications. These arches are made from rolled steel sections with an "I" shape, featuring a vertical web and horizontal flanges. I-beam steel arches provide excellent load-bearing capacity and structural integrity, making them suitable for supporting heavy loads and withstanding the pressures of underground mining operations. They are available in various sizes and can be easily installed using bolts or other fastening methods.

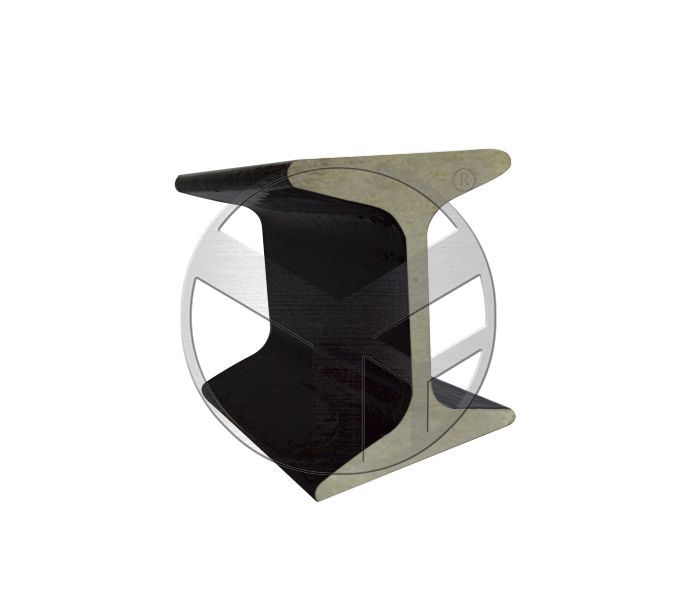

9# I Beam for Mining

  9# I Beam for Mining

Square Set Steel Arches:

Square set steel arches consist of square or rectangular steel tubes used as support beams in underground mining. These arches are typically constructed by placing vertical square or rectangular timber sets at regular intervals and then reinforcing them with steel tubes. Square set steel arches are versatile and provide good support in tunneling and excavation projects. They are commonly used in soft ground conditions where additional reinforcement is necessary to prevent collapses or cave-ins.


Tubular Steel Arches:

Tubular steel arches are made from hollow steel tubes and are widely utilized in mining operations. These arches provide structural support while allowing for efficient ventilation and material flow in underground tunnels. Tubular steel arches can be circular or rectangular in shape, depending on the specific requirements of the mining project. They are lightweight, easy to handle, and resistant to corrosion, making them suitable for various mining environments.


Rolled Steel Arches:

Rolled steel arches are formed by rolling steel plates into an arch shape. These arches offer high strength and are capable of supporting heavy loads and resisting deformation. Rolled steel arches are commonly used in mining applications where large spans or long distances need to be supported, such as in mine tunnels or galleries. They are designed to distribute the load evenly and provide stability in challenging ground conditions.

36 U Mining Arch Support Steel

 36 U Mining Arch Support Steel

Angle Steel Arches:

Angle steel arches consist of steel angles joined together to form an arch shape. These arches offer strength and rigidity, making them suitable for supporting tunnels, shafts, or other underground structures. Angle steel arches are versatile and can be easily customized to fit specific dimensions and requirements. They are commonly used in mines with varying ground conditions and are often combined with other support systems, such as bolts or mesh, to enhance stability.


Composite Steel Arches:

Composite steel arches combine different materials, such as steel and concrete, to create a robust and efficient support system. These arches often feature a steel frame with concrete infill, providing a balance between strength, durability, and cost-effectiveness. Composite steel arches are used in mining projects where additional load-bearing capacity and structural stability are required. They are suitable for supporting large spans and can be designed to withstand dynamic loads and seismic forces.


Corrugated Steel Arches:

Corrugated steel arches are specifically designed for tunneling and mining applications. These arches feature a corrugated profile, which provides increased structural strength and stability. The corrugated shape allows for flexibility and expansion, making them resistant to ground movements and deformations. Corrugated steel arches are lightweight, easy to transport, and can be quickly assembled in mining tunnels or excavations.

Yongyang products are widely used in automobile, machinery manufacturing, oil and gas exploitation, mineral exploitation, and other industrial fields. If you need more information on arch support steel, please don’t hesitate to contact us at sales@yyrail.com, we will try our best to support you.
