Product Name:

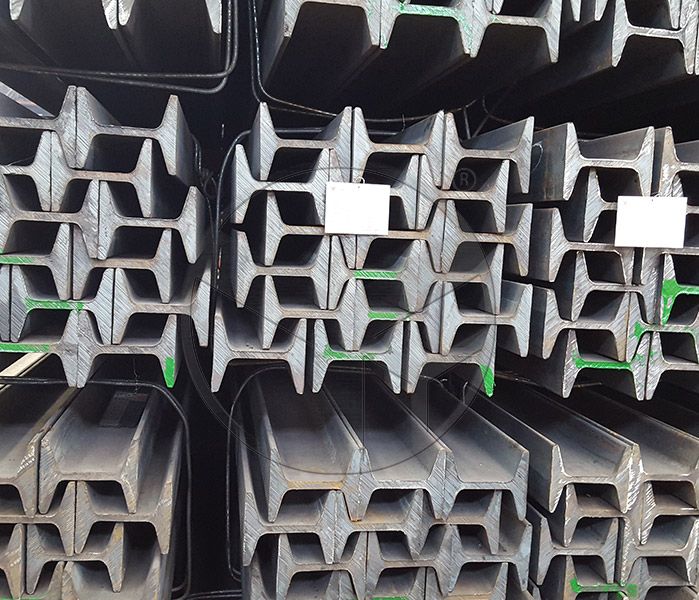

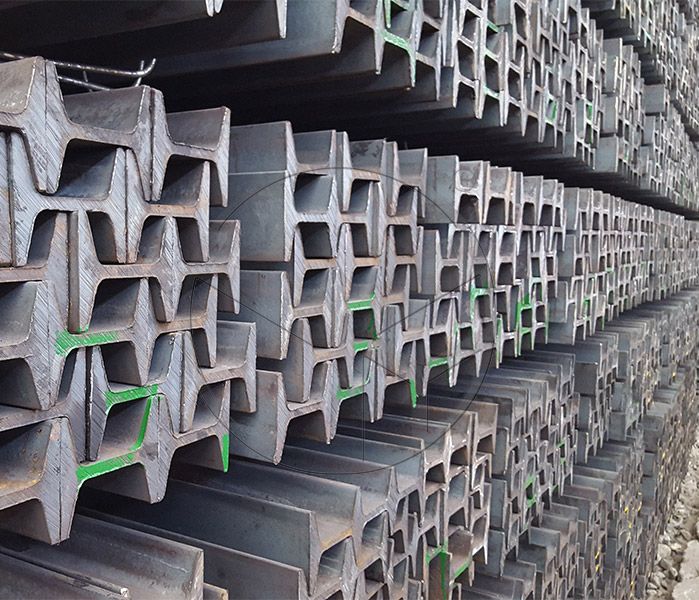

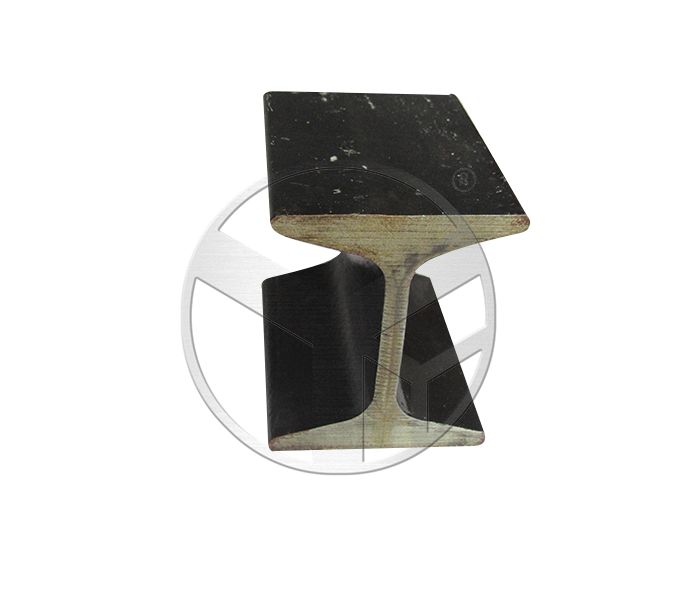

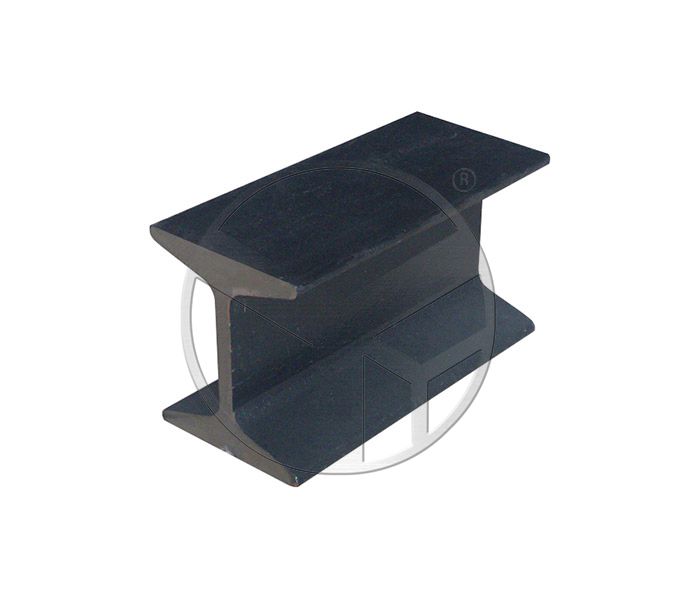

11# I beam for Mining

Material:  Q235  20Mnk

Weight:26.05Kg/m

Length:  8m, 9m, 10m

Standard: YB/T5047-2000

Share

Product Parameters


NameModelSectional Dimensions(mm)Theory Weight(kg/m)
HeightLeg widthWaist width
Mining I-beam9#90.0076.008.0017.69
11#110.0090.009.0026.05
12#120.0095.0011.0031.18


Introduction and application:


Hot rolled mining I beam can be used in mine road support. In order to avoid or minimize the chance of mine roadway collapsing,mine support products are necessary. And with the I beam support , it can obviously improve the level of safety in the tunnel. The mining I beam can be used under multiple conditions ,fractured road or road with gravel,clay ,silt. Use the I beam accessories accordingly, you can get the most safe work environment in the tunnel under many circumstances.
